Oil resistant, wear resistant, bending resistant, with shield, anti-Jamming, hydrolysis resistant, thermostable and cold-resistant

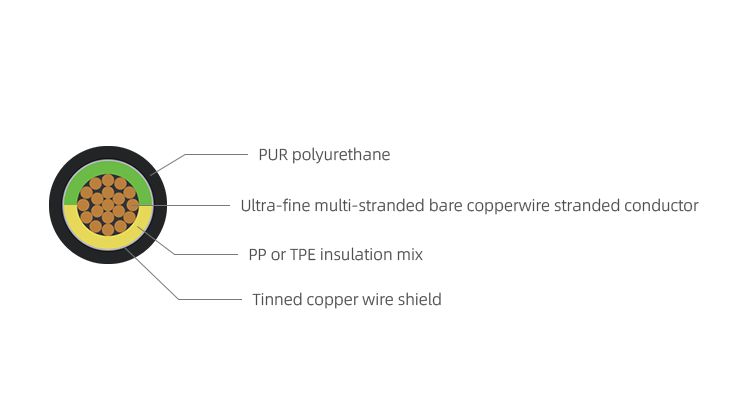

Sketch Map
Technical Parameter
Conductor: Ultra-fine multi-stranded bare copper wire stranded conductor.(six categories)。
Insulation: PP or TPE insulation mixture.
Core wire color: gray; Other colors can be customized as needed.
Shielding layer: Tinned copper wire woven shielding, optical coverage of about 85%.
Outer sheath: PUR polyurethane, adjusted to meet drag chain requirements. Colors can be matched according to customer reauirements.
Minimum bending radius: mobile application: 8xd;
Fixed installation: 4xd.
Operating temperature range: Mobile installation: -20℃ to+80℃·
Fixed installation: -40℃to+80℃.
Rated voltage: 450/750V.
Test voltage: 4000V.
Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Product Characteristics
Has excellent wear resistance, bending resistance and oil resistande;
Flame retardant according to TEC60332-1-2CET 20-35 FT1. VW-1;
Designed for up to 5 million bending cvcles in power drag chains.
Application Scope
Mechanical manufacturing, machine tool equipment automated production lines;
Can come into contact with oil stains·Mobile applications under moderate mechanical stress;
Eauipped with high-density woven layer, more suitable for anti electromagretic interference situations.
Product Standards
| Material code | Number of cores and nominal cross-section of conductor(mm²) | Approximate outer diameter(mm²) | Cable weight kg/km |
| FD-80CP-1-2.5 | 1x2.5 | 5.7 | 62 |
| FD-80CP-1-4.0 | 1X4.0 | 7.2 | 81 |
| FD-80CP-1-6.0 | 1x6.0 | 8.6 | 137 |
| FD-80CP-1-10.0 | 1x10.0 | 9.7 | 224 |
| FD-80CP-1-16.0 | 1x16.0 | 11.2 | 293 |
| FD-80CP-1-25.0 | 1x25.0 | 12.5 | 407 |
| FD-80CP-1-35.0 | 1x35.0 | 15.1 | 604 |
| FD-80CP-1-50.0 | 1x50.0 | 17.1 | 805 |
| FD-80CP-1-70.0 | 1x70.0 | 19.4 | 1078 |
Our products have a wide range of applications and guaranteed quality
