Motor Winding Connecting Flexible Cable

FD-80P Single-core Power Line

Oil resistant, wear resistant, bending resistant, hydrolysis resistant, thermostable and cold-resistant

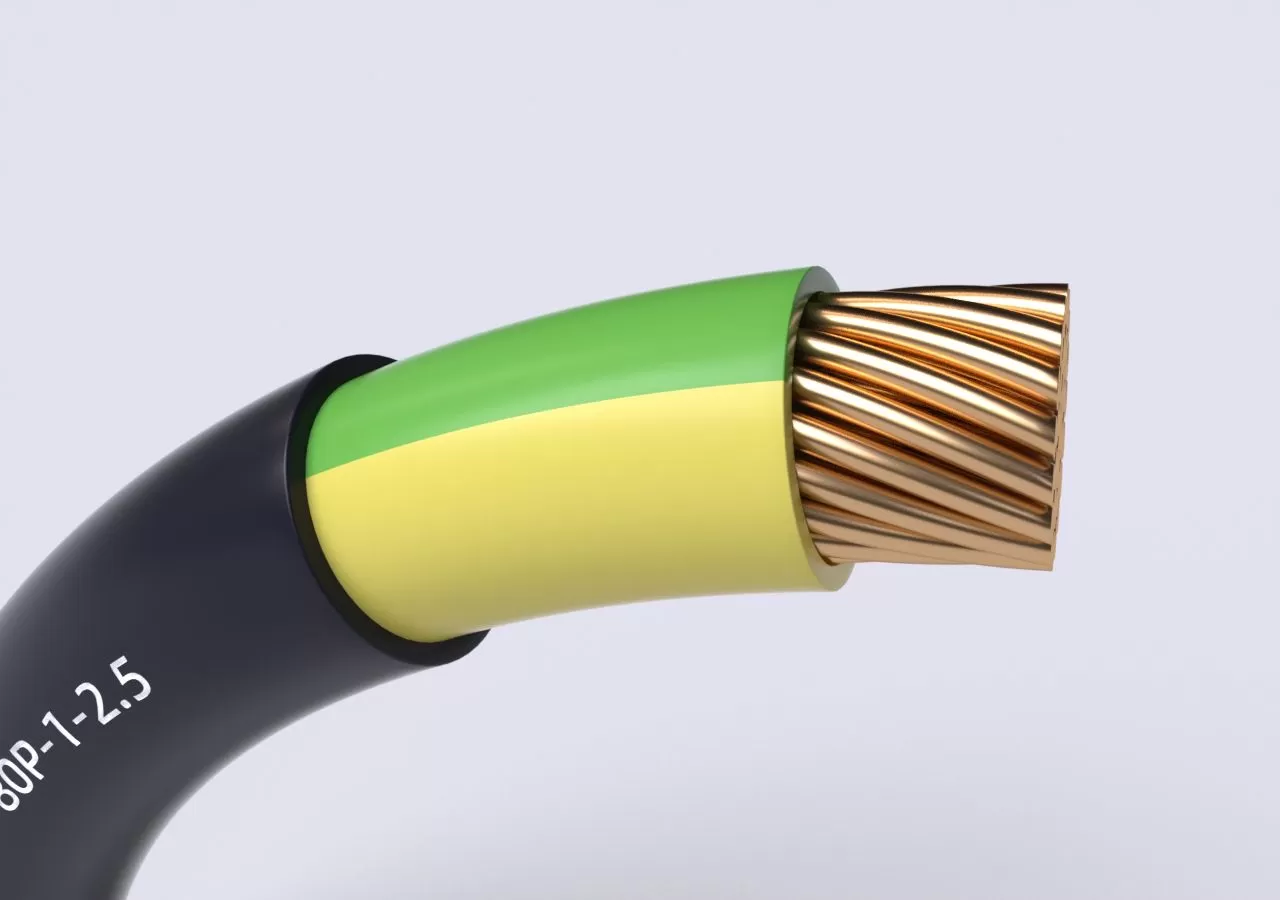

Sketch Map

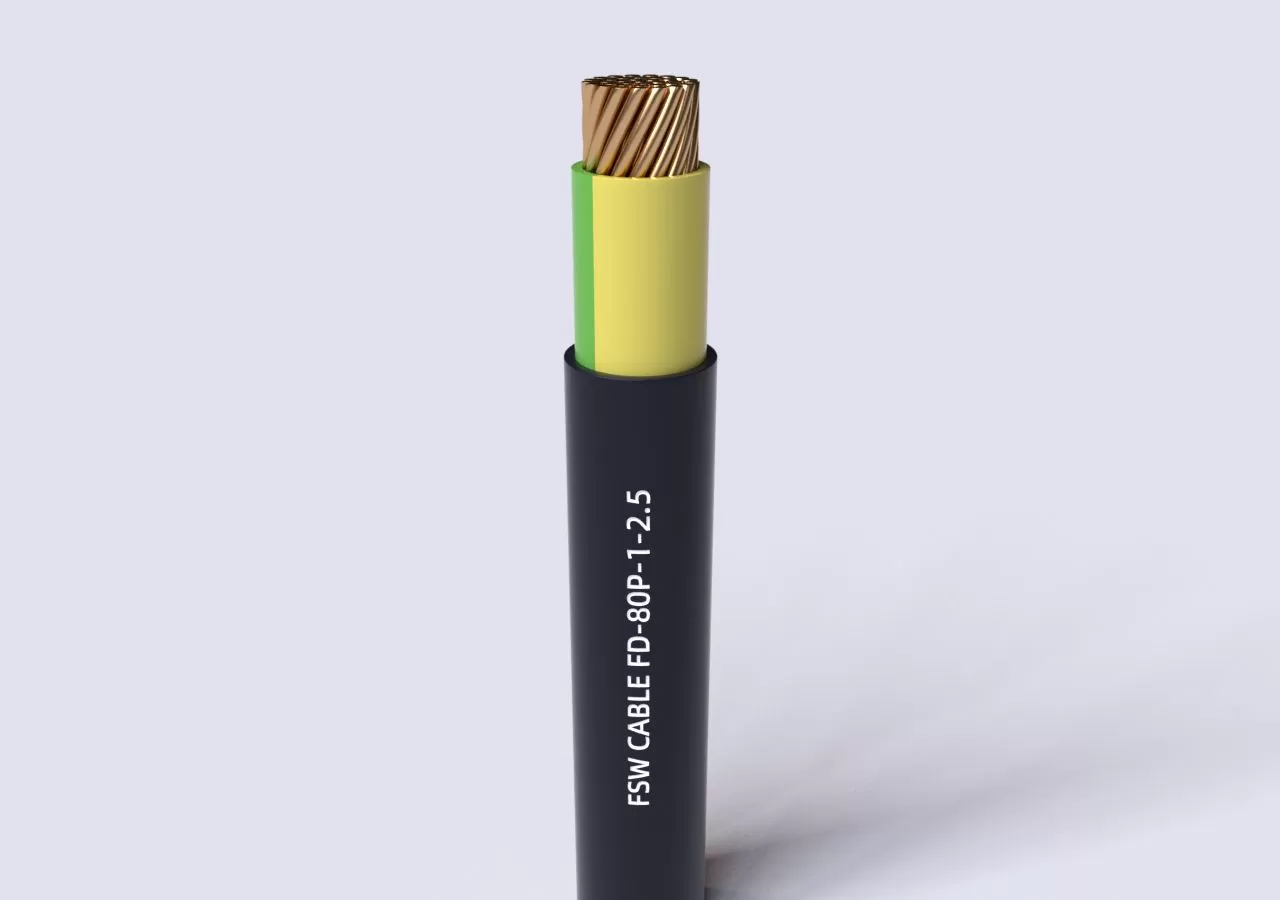

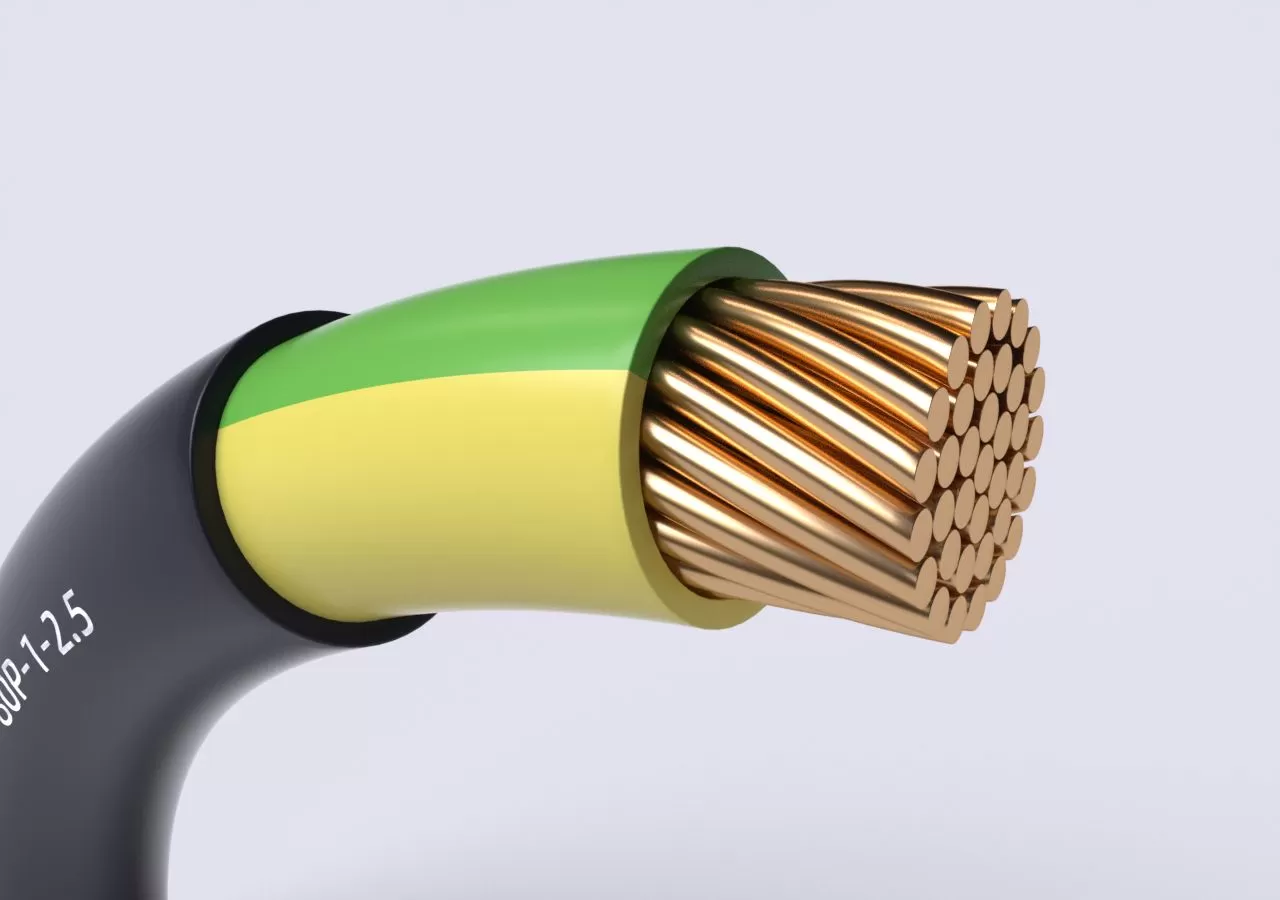

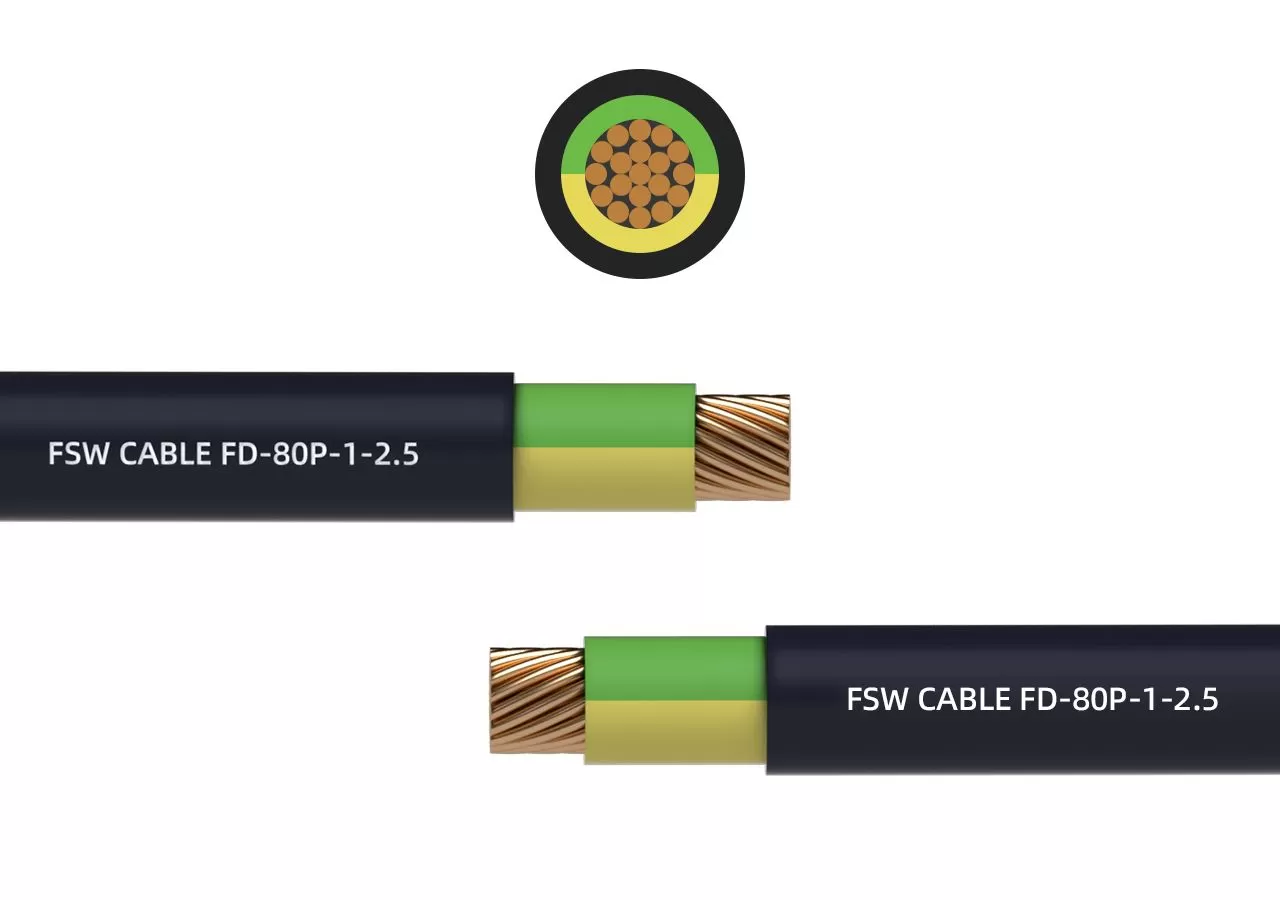

FD-80P Single-core Power Line

Technical Parameter

Conductor: Ultra-fine multi-stranded bare copper wire stranded conductor(six categories).

Insulation: PP or TPE insulation mixture.

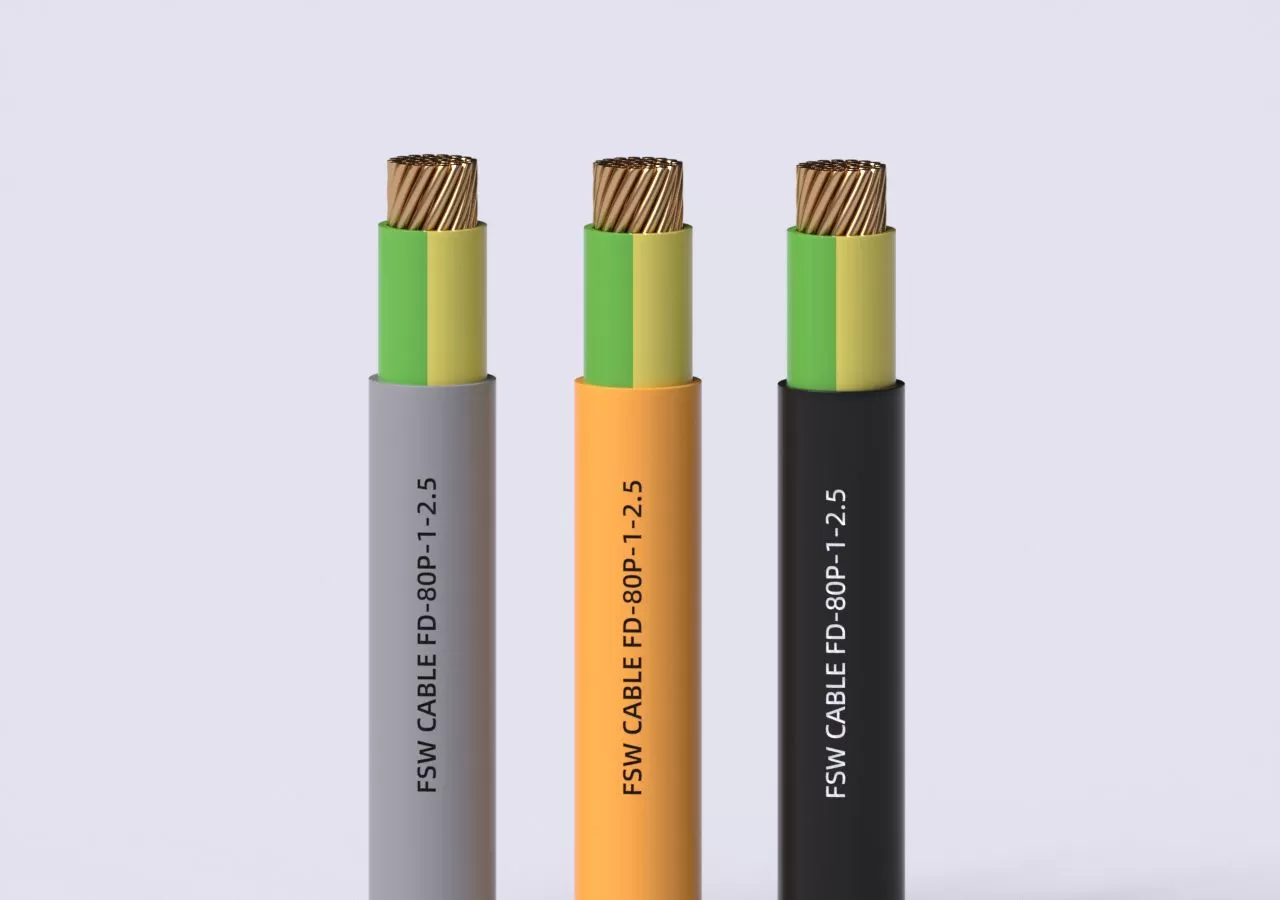

Core wire colors: gray, black, yellow/green, or other colors can be customized as needed.

Outer sheath: PUR polyurethane, adjusted to meet drag chain requirements.Colors can be matched according to customer requirements.

Minimum bending radius: mobile application: 8xd; Fixed installation: 4xd.

Operating temperature range: Mobile installation: -5℃ to +80℃ Fixed installation: -30Cto+80℃.

Rated voltage: 450/750V.

Test voltage: 4000V.

Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.

Product Characteristics

Has excellent wear resistance, bending resistance, oil resistance, and hydrolysis resistance;

Flame retardancy in accordance with IEC60332-1-2CEI 20-35, FT1, VW-1;

Designed for up to 5 million bending cycles in power drag chains.

Application Scope

Suitable for mobile use in atomatic machine drag chains.

Product Standards

Material codeNumber of cores and nominal cross-section of conductor(mm²)  Approximate outer diameter(mm²)Cable weight kg/km
FD-80P-1-2.51x2.55.244
FD-80P-1-4.01X4.0666
FD-80P-1-6.01x6.07.297
FD-80P-1-10.01x10.09154
FD-80P-1-16.01x16.09.9213
FD-80P-1-25.01x25.011.3303
FD-80P-1-35.01x35.013.1423
FD-80P-1-50.01x50.015.9607

Our products have a wide range of applications and guaranteed quality
