Oil resistant, wear resistant, bending resistant

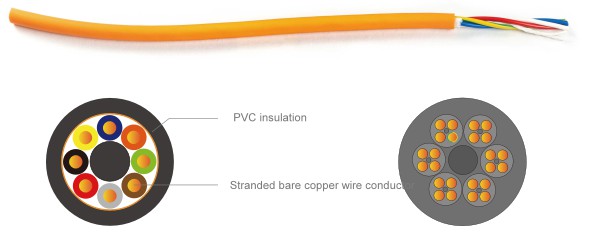

Sketch Map
Technical Parameter
Conductor: Multi-stranded bare copper wire stranded conductor.
Insulation:PVC
Core wire color: color differentiation or black core wire white numerical identification.
Core wire stranding: twisted together at the optimal pitch.

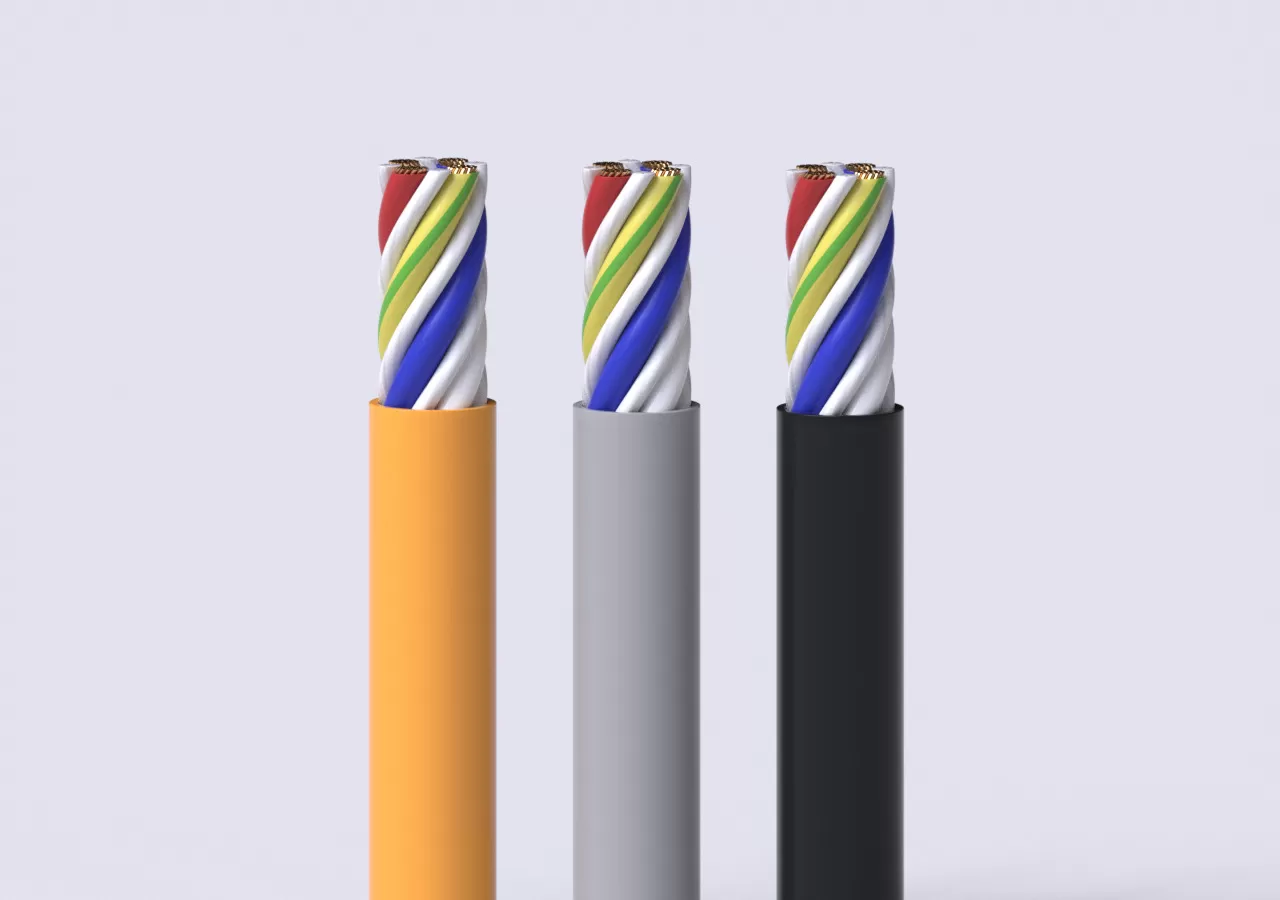

Outer sheath: PVC, color can be matched according to customer reguirements.
Minimum bending radius: occasional movement: 15xd; Fixed installation: 4xd.
Operating temperature range: Mobile installation: -5℃to+70℃;Fixed installation:-20℃to+80℃.
Rated voltage: 300/500V.
Test voltage: 4000V.
Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Product Characteristics
Has higher electrical performance, higher flexibility, smaller cable outer diameter, and saves installation space.
Flame retardancy in accordance withIEC60332-1-2.
Application Scope
Equipment installation engineering industrial machinery, heating and air conditioning installation systems, power stations;
Suitable for dry or humid snaces subiect to moderate mechanical loads;
Suitable for fixed installation and occasional bending situations with free and discontinuous reciprocating movement without tensile load;
Suitable for torsion applications. typical anplications are in the crobsover area of wind turbines(WTGS).
Product Standards
Material code | Number of cores and nominal cross-section of conductor(mm²) | Approximate outer diameter(mm²) | Cable weight kg/km |
PS-2-0.5 | 2x0.5 | 5.3 | 40 |
PS-3-0.5 | 3x0.5 | 5.7 | 48 |
PS-4-0.5 | 4x0.5 | 6.3 | 58 |
PS-5-0.5 | 5x0.5 | 6.8 | 67 |
PS-7-0.5 | 7x0.5 | 8.0 | 88 |
PS-12-0.5 | 12x0.5 | 9.5 | 136 |
PS-18-0.5 | 18x0.5 | 11.8 | 185 |
PS-25-0.5 | 25x0.5 | 13.5 | 250 |
PS-30-0.5 | 30x0.5 | 14.3 | 290 |
PS-34-0.5 | 34x0.5 | 15.6 | 340 |
PS-50-0.5 | 50x0.5 | 18.5 | 500 |
PS-2-0.75 | 2x0.75 | 5.7 | 49 |
PS-3-0.75 | 3x0.75 | 6.2 | 60 |
PS-4-0.75 | 4x0.75 | 6.8 | 70 |
PS-5-0.75 | 5x0.75 | 7.4 | 85 |
PS-7-0.75 | 7x0.75 | 8.9 | 110 |
PS-12-0.75 | 12x0.75 | 10.6 | 173 |
PS-18-0.75 | 18x0.75 | 12.7 | 259 |
PS-25-0.75 | 25x0.75 | 15.2 | 363 |
PS-2-1.0 | 2x1.0 | 6.1 | 58 |
PS-3-1.0 | 3x1.0 | 6.6 | 72 |
PS-4-1.0 | 4x1.0 | 7.3 | 88 |
PS-5-1.0 | 5x1.0 | 8.0 | 104 |
PS-7-1.0 | 7x1.0 | 9.6 | 142 |
PS-12-1.0 | 12x1.0 | 11.4 | 221 |
PS-14-1.0 | 14x1.0 | 12.3 | 258 |
PS-16-1.0 | 16x1.0 | 13 | 287 |
PS-18-1.0 | 18x1.0 | 13.9 | 324 |
PS-25-1.0 | 25x1.0 | 16.4 | 445 |
PS-41-1.0 | 41x1.0 | 20.6 | 712 |
PS-50-1.0 | 50x1.0 | 22.3 | 854 |
Material code | Number of cores and nominal cross-section of conductor(mm²) | Approximate outer diameter(mm²) | Cable weight kg/km |
PS-2-1.5 | 2x1.5 | 7.7 | 83 |
PS-3-1.5 | 3x1.5 | 8.2 | 106 |
PS-4-1.5 | 4x1.5 | 9 | 131 |
PS-5-1.5 | 5x1.5 | 9.8 | 166 |
PS-7-1.5 | 7x1.5 | 11.0 | 203 |
PS-12-1.5 | 12x1.5 | 15 | 327 |
PS-18-1.5 | 18x1.5 | 18 | 465 |
PS-25-1.5 | 25x1.5 | 21 | 662 |
PS-2-2.5 | 2x2.5 | 9.2 | 113 |
PS-3-2.5 | 3x2.5 | 10 | 145 |
PS-4-2.5 | 4x2.5 | 10.8 | 190 |
PS-5-2.5 | 5x2.5 | 12 | 228 |
PS-7-2.5 | 7x2.5 | 14.2 | 311 |
PS-12-2.5 | 12x2.5 | 18.5 | 486 |
PS-18-2.5 | 18x2.5 | 23 | 743 |
PS-25-2.5 | 25x2.5 | 25 | 971 |
PS-3-4.0 | 3x4.0 | 11 | 198 |
PS-4-4.0 | 4x4.0 | 12.3 | 260 |
PS-5-4.0 | 5x4.0 | 13.8 | 325 |
PS-4-6.0 | 4x6.0 | 14.5 | 373 |
PS-5-6.0 | 5x6.0 | 16 | 458 |
PS-4-10.0 | 4x10.0 | 18.2 | 592 |
PS-5-10.0 | 5x10.0 | 20.6 | 762 |
PS-4-16.0 | 4x16.0 | 21.5 | 900 |
PS-5-16.0 | 5x16.0 | 24.5 | 1119 |
PS-4-25.0 | 4x25.0 | 28.5 | 1445 |
PS-4-35.0 | 4x35.0 | 31 | 1894 |
